Electrical Tools Names and Pictures PDF

This post was originally published on this site

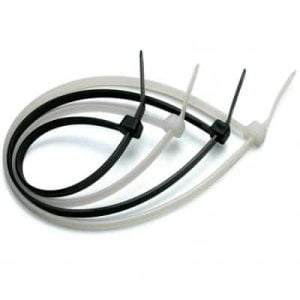

Names Images  Uses 1. Tape Measure ✔ used to measure distance or size. 2. Electrical Tape ✔ This material is generally used to cover and insulate cables, wires, and other conductive materials to prevent electrical current from escaping or interfering with other electrical systems. 3. Cable Ties ✔ This item is typically utilized for fastening objects together, most frequently electrical cables or wires. 4. Solder Capillary Lead-Free Wire ✔ This product is designed to create flawless joints in a fast and efficient manner. 5. Electric Drill ✔ Used for drilling circular holes in the material. 6. Level ✔ Used to determine whether a surface is horizontal (level) or vertical (plumb). 7. Wire/Cable Lugs ✔ Used for connecting cables to electrical appliances, other cables, surfaces, or mechanisms. 8. Super Fire 2 Torch ✔ Used for soldering and brazing.  9. Coax Connector   ✔ This item is designed to connect cables to electrical appliances, other cables, surfaces, or mechanisms. 10. Flux Brush ✔ Used in connections that are joined together by soldering.  11. Wire Strippers ✔ Used for removing the protective coating of an electric wire to replace or repair the wire.  12. Fish Tape ✔ Used for pulling electrical or other wires through conduits. 13. Hacksaw ✔ Used for cutting thin metal such as aluminum, brass, steel, or copper. 14. Pliers ✔ Used for gripping.  15. Fishing Rods ✔ Used to install wires above ceilings, in attics, through walls, etc.  16. Terminal Block ✔ Used to secure and terminate wires  17. Voltage Tester ✔ Used primarily on AC currents, although some can also be used on DC currents. 18. Crimpers ✔ Used to make cold weld joints between wires and a connector by deforming one or both to hold the other. 19. Gloves ✔ Used to protect and comfort hands against cold or heat, damage by friction, abrasion or chemicals, and disease  20. Line Tester ✔ used to test current presence and identify phase / live wire in electrical installations.  21. Reaming Bit ✔ Used as a cutting tool.  22. Conduit Bender ✔ Used to bend electrical pipes for installation. 23. Goggles ✔ Used to shield the eyes against liquid or chemical splash, irritating mists. 24. Heat Shields/Pads ✔ Used to protect objects from overheating. 25. Stubby screwdriver ✔ Used to facilitate access to screws located in areas that cannot be reached easily by a regular screwdriver. 26. Flashlights ✔ Used to provide a source of light at a time of night. 27. Rescue Rod/Hook ✔ This tool is designed to help remove individuals who have been incapacitated by electrical shock from the hazardous area.
